Type: Lithium thionyl chloride (LiSOCl2). Voltage: 3.6 V.

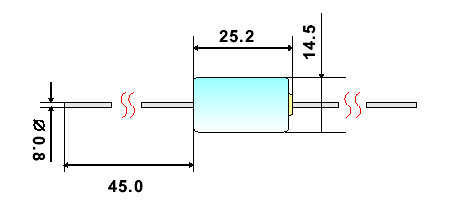

Length: 25.2 mm. Diameter: 14.7 mm.
Termination: Axial wires. 45 mm x 0.8 mm tin plated nickel wires
Price: £6.10 each. £5.90 each if you buy two or more. Postage and packing included.
Can replace 1/2 AA size batteries such as: Tadiran TL-5902, Tadiran TL-2150, Tadiran TL-5151, Tadiran TL-4902, Tadiran TL-5111, Tadiran TL-5101,Saft LS-14250, Saft LS-14250C, Sonnenschein SL-350/S, Sonnenschein SL-750/S, Maxell ER3S-TC, Maxell ER3S, Minamoto ER14250.
This 1/2 AA Lithium Thionyl Chloride battery is mounted into a variety of monitoring equipment because of the long life and high energy content of the battery. The 1/2 AA Lithium Thionyl Chloride battery with axial wires is ideal for these applications.
Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries. It also has the widest operating temperature range of -55°C to + 85°C. Self discharge is low at less than 1% per annum at 20°C, giving an effective shelf life of 10 years.
With such a long shelf life, why not buy two or more packs, take advantage of our reduced price and make sure you are not left in the lurch next time your battery runs out.
Visit here if you need the bare version of this cell without any type of solder tags.
Visit here if you need the version of this cell with solder pins.
Visit here if you need the version of this cell with solder tags.
Visit here if you need the version of this cell with polarized solder pins.
* Actual manufacturer may vary depending upon availability
