Type: Lithium thionyl chloride (LiSOCl2). Voltage: 3.6 V.
Length: 50.5 mm. Diameter: 14.7 mm.

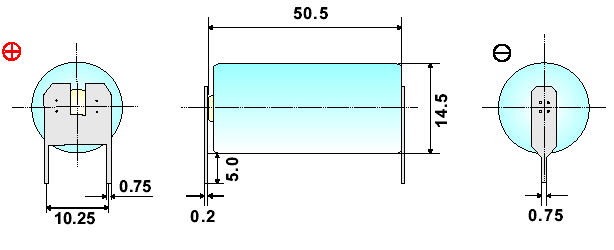

Termination: tin plated nickel polarized pins as illustrated.
Price: £7.10 each. £6.70 each if you buy two or more. Postage and packing included.
Can replace AA size batteries such as: Tadiran TL-5903, Tadiran TL-2100, Tadiran TL-4903, Tadiran TL-5104, Saft LS-14500, Saft LS-14500C, Sonnenschein SL-360/S, Sonnenschein SL-760/S, Maxell ER6S-TC, Minamoto ER14505, Xeno XL-060F.
This AA Lithium Thionyl Chloride battery with polarized pcb pins is ideal for and widely used in wireless alarm systems, memory backup for computers and night vision equipment.
This AA Lithium Thionyl Chloride battery is mounted into a variety of monitoring equipment because of the long life and high energy content of the battery. The AA Lithium Thionyl Chloride battery with polarized pins is ideal for these applications.
Note: this configuration with the double pin on the positive is most prevalent in Europe. For the less popular "double-pin on negative" type see below.
Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries. It also has the widest operating temperature range of -55°C to + 85°C. Self discharge is low at less than 1% per annum at 20°C, giving an effective shelf life of 10 years.
With such a long shelf life, why not buy two or more packs, take advantage of our reduced price and make sure you are not left in the lurch next time your appliance needs a new battery.
Visit here if you need the bare version of this cell without solder tags.
Visit here if you need the version of this cell with solder tags.
Visit here if you need the version of this cell with axial wires.
Visit here if you need the version of this cell with polarized solder pins with double pin on negative.
Other terminations can be built to order. Please contact us.
* Actual manufacturer may vary depending upon availability
