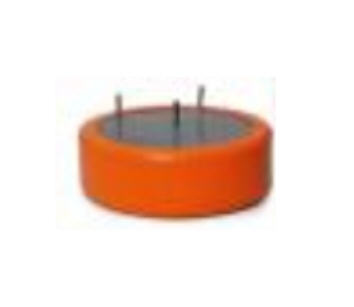

ER34100 1/6D 3.6V Lithium Thionyl Chloride (Wafer Cell with pins)

Type: Lithium Thionyl Chloride. Voltage: 3.6 V.

Height: 10.0 mm. Diameter: 32.9 mm.

Termination: three PCB pins (tinned nickel).

Price: 8.49 each. 7.92 each if you buy two or more. Postage and packing included.

Replaces: 1/6D, ER32L100, Able ER34105, Tadiran TL-2135, TL-2135/P, Tadiran TL-4935, TL-4935/P, Tadiran TL-5135, TL-5135/P, EEMB ER34100, Sonnenschein SL-386, SL-386,/P, Sonnenschein SL-786, SL-786/P, GMB ER33100.

This 1/6D or ER34100 3V Lithium battery replaces Tadiran TL-2135, Tadiran TL-4935, Tadiran TL-5135, Sonnenschein SL-386, Sonnenschein SL-786 batteries and many others.

The 1/6D or ER34100 Wafer Cell has three PCB pins that protrude 4.6 mm. The central pin is the positive terminal, the two outer pins are the negative terminals.

This 1/6D or ER34100 Wafer Cell is widely used for CMOS memory backup in personal computers, and for many other electronics applications.

The size of this 1/6D or ER34100 Wafer Cell is occasionally referred to as 1/6R20 or 1/6UM-1.

This 1/6D or ER34100 is a high-capacity cylindrical-type Primary Lithium Battery with a bobbin structure and  laser-sealing. The 1/6D or ER34100 uses Lithium Thionyl Chloride chemistry for a high energy density and a wide operating temperature range of -55C to + 85C. Self discharge is low at less than 1% per annum at 20C, giving an effective shelf life of 10 years.

Click here for a full specification.............

With such a long shelf life, why not buy two or more packs of the 1/6D or ER34100. Take advantage of our reduced price and make sure you are not left in the lurch next time your battery runs out.

* Actual manufacturer may vary depending upon availability
